Industrial Heating Cable RDP
Home / Industrial Heat Tracing / Industrial Constant Wattage Heating Cable / Industrial Heating Cable RDP /

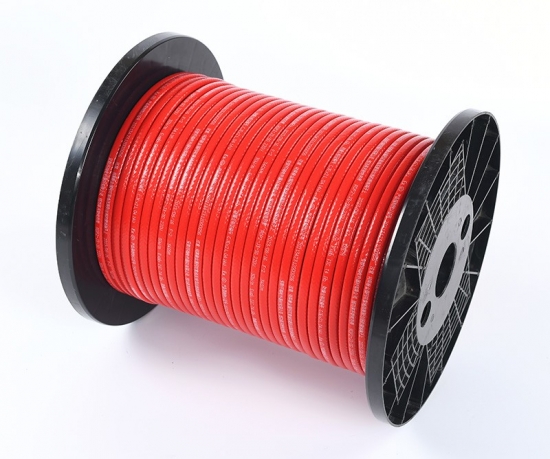

Parallel Resistance Constant Wattage Heating Cable For Industrial And Natural Gas Pipeline

Constant Wattage Heating Cable

Parallel Resistance Constant Wattage Heating Cable For Industrial And Natural Gas Pipeline

Parallel constant wattage heating cable can be used for pipe and equipment freeze protection and process temperature maintenance requiring high power output or high temperature exposure.

  • Brand:

    Huanrui
  • Max. Exposure Temperature:

    205°C
  • Min. Installation Temperature:

    -60℃
  • Rated Voltage:

    220V
  • Bus Wire Gauge:

    2.0mm² & 2.5mm²
  • Dielectric strength:

    2000V 50Hz/1min
  • Outer dimensions:

    6.3x9.5mm
  • Insulation resistance:

    ≥20M Ohm
  • Insulation material:

    FEP
  • Protection Class:

    IP54
  • Certifications:

    CE,EAC,EACEX,ATEX,IEx e IIC T3 Gb X,Ex tb IIIC T200°C Db X

  This type provides an economical alternative to self-regulating heating cable but requires more skill for installation and more advanced control and monitor systems. Constant wattage heating cables can provide process temperature maintenance up to 150°C and can withstand exposure temperatures up to 205°C with power on.



Product advantages

1.Durable and strong structure

2.High water-proofness.  IP68

3.Long working life

4.25years warranty

5.Small size ,no increase in floor thickness

6.100% screened with Zero EMF

7.100% tested before delivery

8.Free of maintenance

9.Anti-UV

10. High-end automation equipment manufacturing

11.Complete product range

12.Global certification
