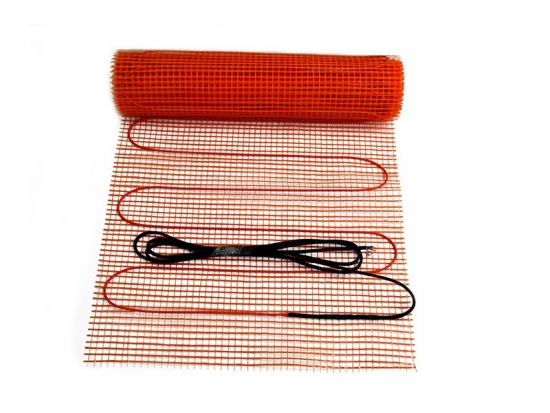

HRDVCM underfloor heating mat uses a twin conductor heating cable for easy installation, and mat is designed for installation into thin adhesive beds, leveling compounds or thin screed beds beneath tiled and wooden floor.
Brand:
HuanruiPower Ouput:
150W/m2, 200W/m2Rated Voltage:
230VOuter Jacket:
PVCOuter dimensions:
3.6mmInsulation material:
FluoropolymerCable structure:
Twin conductorConductor:
Solid heating coreConnector:
Out spliceResistance tolerance:
+10%/-5%Certifications:

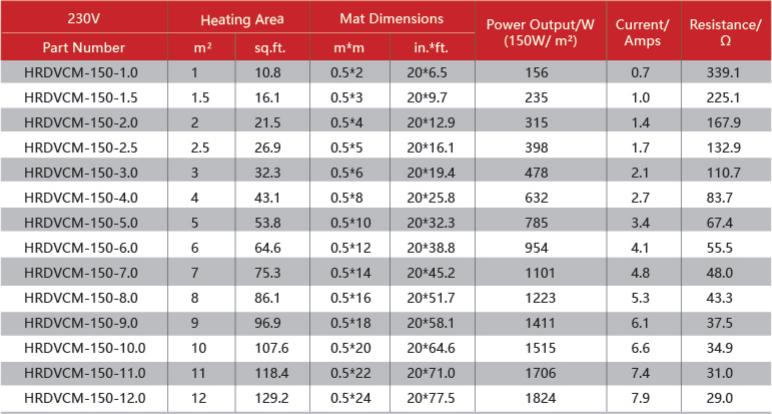

CE150w/m2 underfloor heating mats are suitable as a primary heating source providing you adequate insulation. These are our most commonly used mats for kitchens, dining rooms, large bathrooms and most other areas with tiled floors.

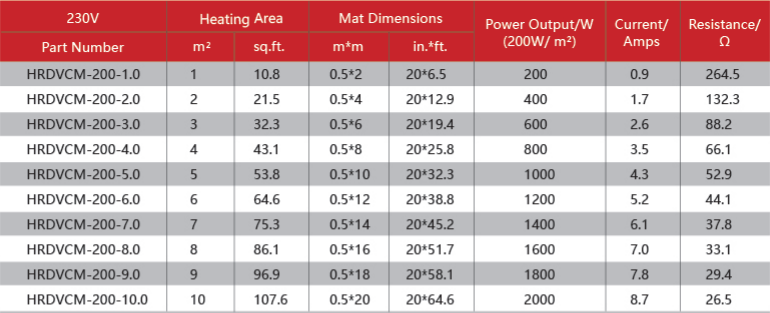

200w/m2 underfloor heating mats are generally used in areas where high heat loss is a problem, such as conservatories. These mats are only suitable under tiled floors, giving a 25% faster warm up time.
Product advantages
1.Durable and strong structure
2.High water-proofness. IP68
3.Long working life
4.25years warranty
5.Small size ,no increase in floor thickness
6.100% screened with Zero EMF
7.100% tested before delivery
8.Free of maintenance
* No sticky mat
* One cold lead, 2.5 meters
* Flexible and 100% screened
* Twin conductor heating cable
