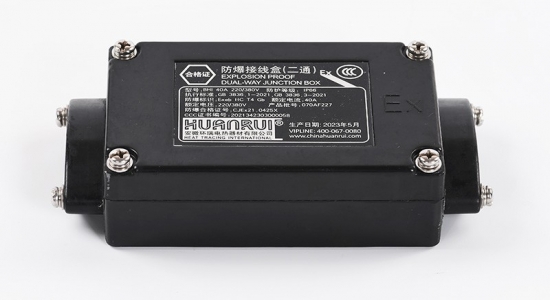

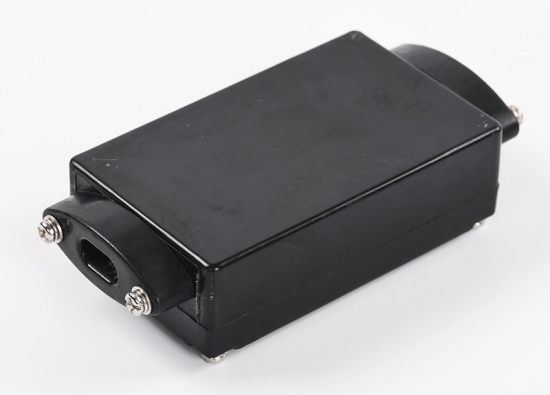

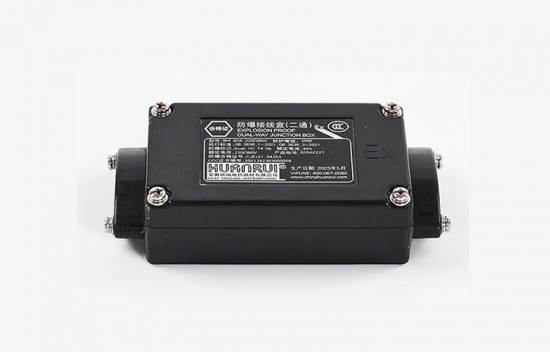

BHI electric heating explosion-proof two-way junction box

Shell material: engineering plastic Current ≤40A. Thread specification:NPT; M40*1.5, M32*1.5, M25*1.5 M20*1.5, M12*1.5 Shell size (mm): 120*120*100; 130*130*120; 220*130*120 Scope of use: Self-limiting temperature heating tape, constant power heating tape, connection components of series constant power power cords and heating tapes.

size: M12/M16/20/ 25/M32/M40 (can be customized) 1" /3/4"/1/2" (can be customized) Material: Polyamide (nylon), stainless steel, brass nickel plated. Scope of use: Fixing and locking devices for various types of cables.

Common voltage: 220V/380V Product classification: Electric heat tracing accessories The explosion-proof distribution box (cabinet) for electric heat tracing is made of aluminum alloy, electrostatic spray plastic, and complies with the explosion-proof regulations of GB3836.2-2000. It is used for the distribution of electric heat tracing products in Class II, Zone 1, and Zone 2 explosion-proof areas. It has overload, single phase, and three-phase two categories, and outputs 1-12 circuits. There are two types of temperature control: fractional display temperature controller and BJW type temperature controller. Anhui huanrui electrical conduit with thermal control and monitoring system will be widely used in the fire pipes, pumps, valves, tank and tank container with heat, anti freezing and anti coagulation, and other heat tracing system. In addition, traffic, petroleum, chemical, electric power, medicine, machinery, food, shipping and other fields, can play a huge role. The real intelligent control can be realized with the current electric heat tracing system.

Product Description: BWK Electric heating explosion-proof temperature controller Common voltage: 220V/380V Product classification: Electric heat tracing accessories The explosion-proof temperature controller for electric heat tracing is used to control the temperature of the heat tracing medium and serves as an accessory for electric heat tracing. Explosion proof power supply connection box used for connection of power cable and electric heating cable in explosion proof area. Generally fixed in the pipe. After matching with the electric heating system, it is suitable to use in the factory area and the two area explosive gas mixture T4 group field use. Explosion proof power supply connection box can be one-way output, and can be two-way output.

Common voltage: 220V/380V Product classification: Electric heat tracing accessories Electric heat tracing heat-resistant pressure sensitive tape, also known as fixed tape, is a type of adhesive tape formed by coating a special adhesive on the basis of glass fiber tape. Aluminum tape is coated with a special adhesive layer on the aluminum foil tape. It is used for heating the temperature control device and the temperature sensing package of the temperature controller is convenient to install, and the main function is to fix the electric heating belt and increase the radiating surface of the electric heating belt.

Common voltage: 220V/380V Temperature resistance: 300 ℃ Product certification: 3C certification The BHD electric heat tracing explosion-proof power supply junction box is a single and bidirectional universal type, which can output the electric ribbon cable in one direction or in two directions. There are three wiring terminals inside the junction box, which can be used for connecting three-phase electric heating strips. When using single-phase, the middle wiring terminal is not used.

Common voltage: 220V/380V Product classification: Electric heat tracing accessories Product certification: explosion-proof certification AH explosion-proof power junction box is suitable for environments with temperature groups T1~T6; Suitable for explosive hazardous environments such as oil extraction, storage, chemical, pharmaceutical, textile, printing and dyeing, military, and military facilities.

Common voltage: 220V/380V Product classification: Electric heat tracing accessories Product certification: 3C certification
