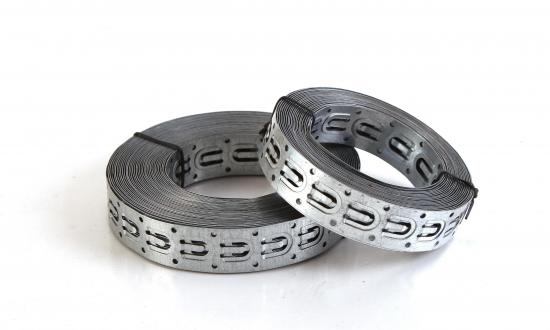

Floor Heating Cable Steel Hanger Strap For Easy To Install

  The steel strip and fixer of a stainless steel belt and a regulating screw, which is used for fixing the explosion proof power supply connection box and other accessories in the pipeline. Application   The steel strip and fixer of a stainless steel belt and a regulating screw, which is used for fixing the explosion proof power supply connection box and other accessories in the pipeline. The steel strip can be cut by 1.1 times the actual fixed length according to the diameter of the pipe. The front and back ends of the adjusting screw are respectively fixed in the small holes of the two ends, and the screw can be tightened. Self-regulating Heating Cable Steel Strapping of a stainless steel belt and a regulating screw, which is used for fixing the explosion proof power supply connection box and other accessories in the pipeline. The steel strip can be cut by 1.1 times the actual fixed length according to the diameter of the pipe. The front and back ends of the adjusting screw are respectively fixed in the small holes of the two ends, and the screw can be tightened.   We have two type of cable strapping, one for our T-cable(3.6mm), another for our I-cable(5.0mm)

Maintain temperature: 0~600℃ Temperature resistance: 600~800℃ Insulating material: magnesium oxide MI cables are manufactured using a special production process using single or multiple alloy electric heating wires as the heating source, high-purity, high-temperature, fused crystallized magnesium oxide as the heat-conducting insulator, and seamless continuous stainless steel or copper tubes as the sheath. In places with strong corrosive effects, PE or low-smoke halogen-free jackets can be added.

HRHC roof and gutter de-icing cables help end costly ice damage by preventing ice dam formation and promoting the free flow of water through gutters and downspouts to ground level.

  Product Name :De-icing cable clamp   Introduction   Combination package of Extra Roof Cable Clips and 16 Extra Roof Cable Spacers . Extra roof cable clips and cable spacers can be ordered (enough are already included with kit to complete the installation.)

LSR self-regulating heating cables provide the most versatility in heat trace designs and applications.

Product advantages 1.Durable and strong structure 2.High water-proofness.  IP68 3.Long working life 4.25years warranty 5.Small size ,no increase in floor thickness 6.100% screened with Zero EMF 7.100% tested before delivery 8.Free of maintenance Features and applications • Residential indoor floor warming. • Workable in humid places such as bathroom. • Applicable for flooring material like concrete, ceramic tile, marble, wood. • Easy installation for indoor whole and partial warming systems for floor and wall warming. • 2.8mm in diameter; lower height, cost-saving. Part Number Length/ m OutputPower/W Resistance/ Q S-cable15-150 10 150 352.7 S-cable15-225 15 225 235.1 S-cable15-300 20 300 176.3 S-cable15-375 25 375 141.1 S-cable15-450 30 450 117.6 S-cable15-525 35 525 100.8 S-cable15-600 40 600 88.2 S-cable15-750 50 750 70.5 S-cable15-900 60 900 58.8 S-cable15-1050 70 1050 50.4 S-cable15-1200 80 1200 44.1 S-cable15-1350 90 1350 39.2 S-cable15-1500 100 1500 35.3 S-cable15-1800 120 1800 29.4 Part Number Length/ m Power Output/W Resistance/Q S-cable10-100 10 100 529.0 S-cable10-150 15 150 352.7 S-cable10-200 20 200 264.5 S-cable10-250 25 250 211.6 S-cable10-300 30 300 176.3 S-cable10-350 35 350 151.1 S-cable10-400 40 400 132.3 S-cable10-450 45 450 117.6 S-cable10-500 50 500 105.8 S-cable10-600 60 600 88.2 S-cable10-700 70 700 75.6 S-cable10-800 80 800 66.1 S-cable10-900 90 900 58.8 S-cable10-1000 100 1000 52.9 S-cable10-1200 120 1200 44.1

RSR self-regulating heating cables provide the most versatility in heat trace designs and applications.

RSR self-regulating heating cables provide the most versatility in heat trace designs and applications. This product has been used for over 1000,000 meters in our company’s key partners, PetroChina, CNOOC,Sinopec,China Aerospace,Wanhua Chemical and other global Fortune 500 companies.
