OEM Heat Tape Antifreezing Water Pipe Heating Cable

self regulating heating cable kit

OEM Heat Tape Antifreezing Water Pipe Heating Cable


MSR kit easily prevents damage and leakage caused by frost and eliminates the inconvenience from iced water.







  • Brand:

    Huanrui
  • Power Ouput:

    10,15(W/M)
  • Max. Maintain Temperature:

    65℃
  • Max. Exposure Temperature:

    85℃
  • Min. Installation Temperature:

    -60℃
  • Rated Voltage:

    110V-120V/220V-240V
  • Max. Current Length/16A Breaker:

    60m Exterior Fitting,30m Interior Fitting
  • Bus Wire Gauge:

    0.5mm²
  • Outer Jacket:

    Fluoropolymer/Thermoplastic
  • Certifications:

    CE,EAC,IEx e IIC T6 Gb X,Ex tb IIIC T85°C Db X

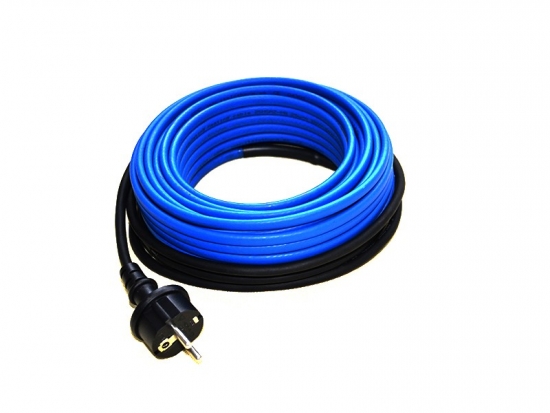

MSR heating cable with a prefabricated plug for easier connection to AC power.

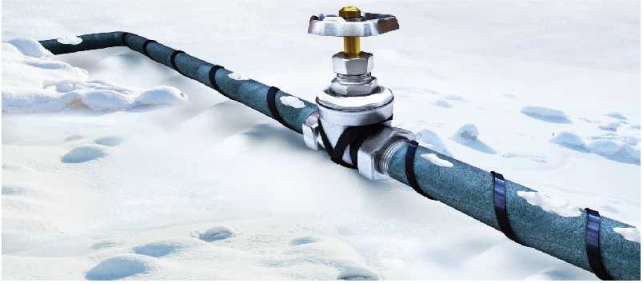

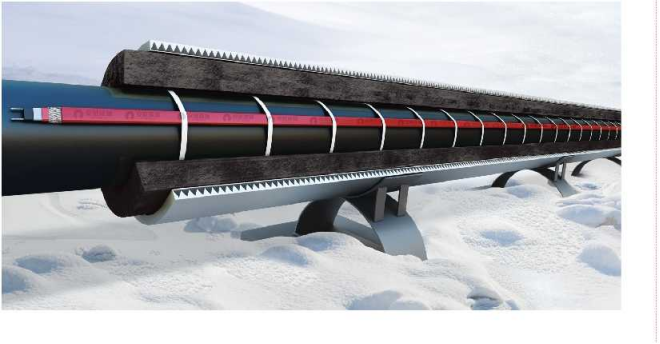

Typical applications include process temperature maintenance, frost protection of small diameter pipelines, tanks, valves, flanges.


The heating cable kit with fluoropolymer or thermoplastic outer jacket is non-toxic and suitable for drinking water pipes. The kit is energy saving and environmentally-friendly, it is also  UV-proof.

For exterior laying, use additional kits. For interior laying, maximum applicable cable length is 60m.


The unique advantages of Huanrui self-regulating heating cable:

1. Improve the temperature resistance level: The temperature resistance level of the PTC semiconductor irradiation heating matrix can reach 100-110°C as needed to improve operational safety.

2. Reduce the starting current: Huanrui adopts double-layer co-extrusion technology, the starting current in the normal power range reaches <0.3A/M, and the ratio of starting current to steady-state current is less than 3 times.

3. Advanced insulation material: The insulation material is 100% matched with the PTC semiconductor irradiation heating matrix. In addition, it has excellent weather resistance, high temperature resistance, and insulation resistance of >2000MΩ, making it safer and more reliable.

4. New process: Huanrui adopts multi-layer co-extrusion technology. The insulation layer and PTC semiconductor irradiation heating matrix are extruded at the same time and completed in one go. The heating matrix and insulation are seamlessly integrated and cannot be peeled off, completely eliminating moisture and water when immersed, impurities cannot harm the core tape. Improve product service life.


Never overheat or burnout when overlapped. Cut to any length. Easy to install.
